Custom LED Channel Letters for Commercial Storefront Signage – Full Fabrication Process

For commercial storefront signage, LED channel letters are one of the most widely used solutions. However, achieving consistent quality across design, fabrication, and final installation requires more than just basic production—it depends on precise engineering control at every stage.

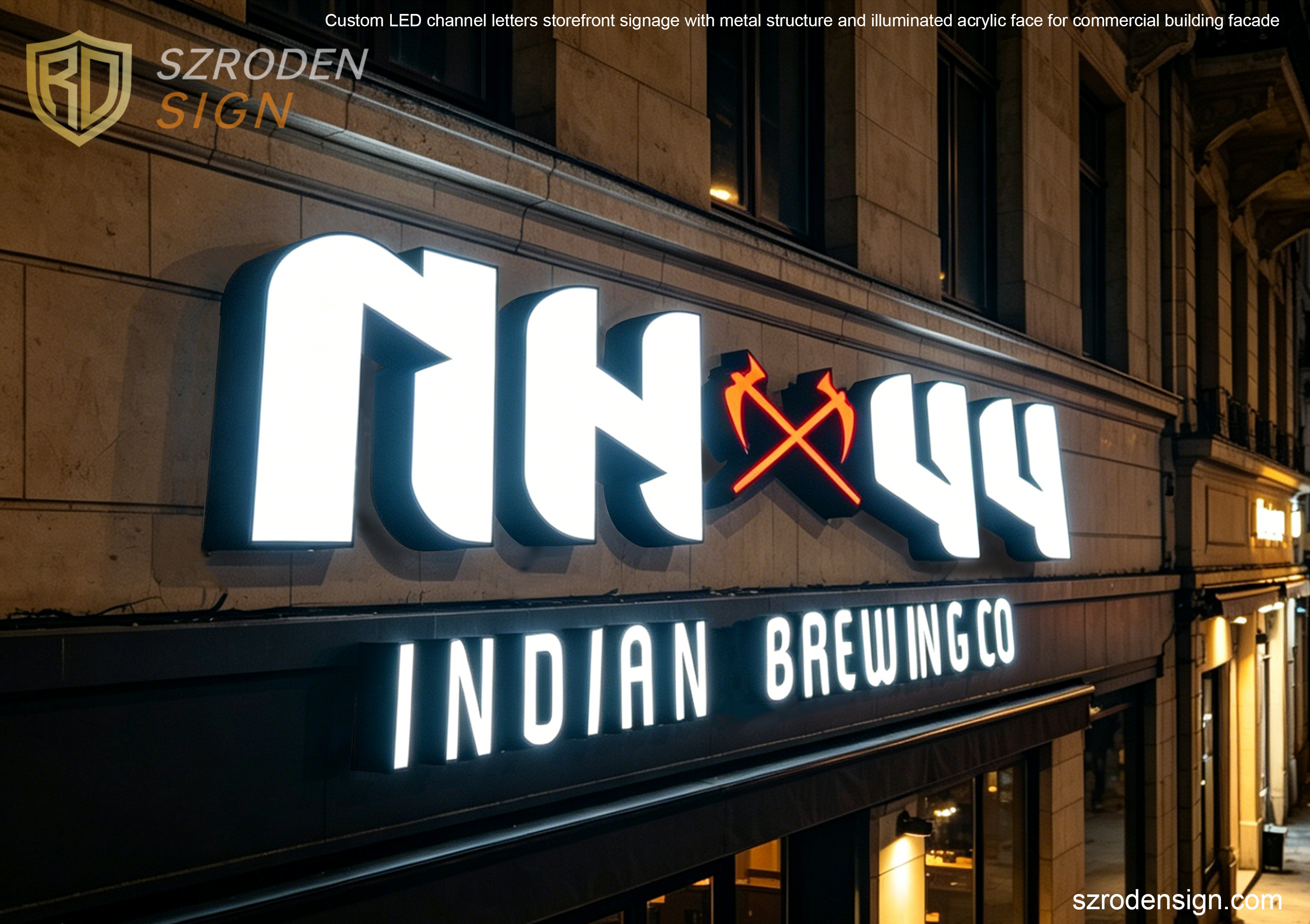

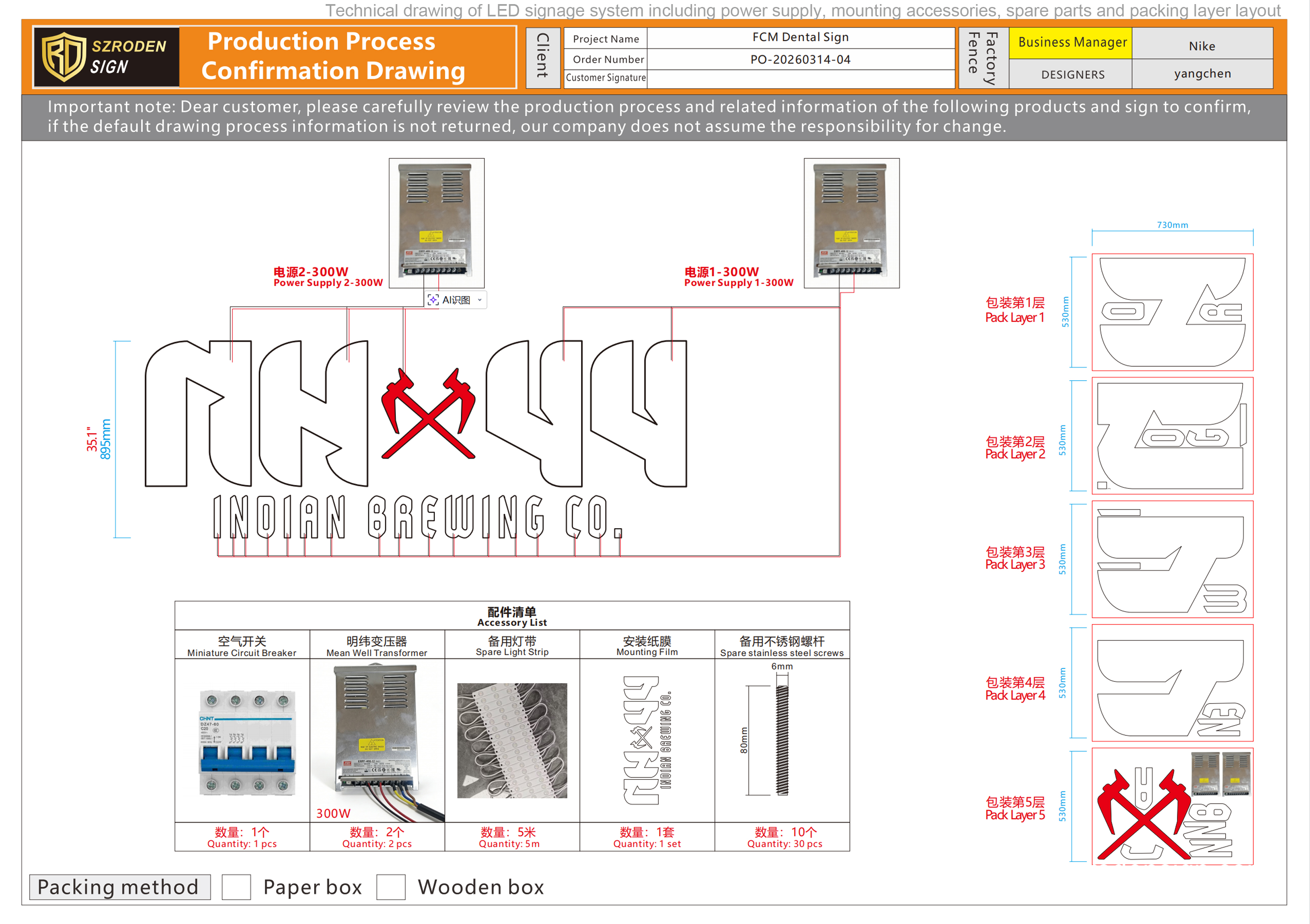

This project features a complete set of custom LED channel letters developed for a commercial branding application. From initial design drawings to final illuminated letters, the goal was to ensure both visual impact and long-term durability.

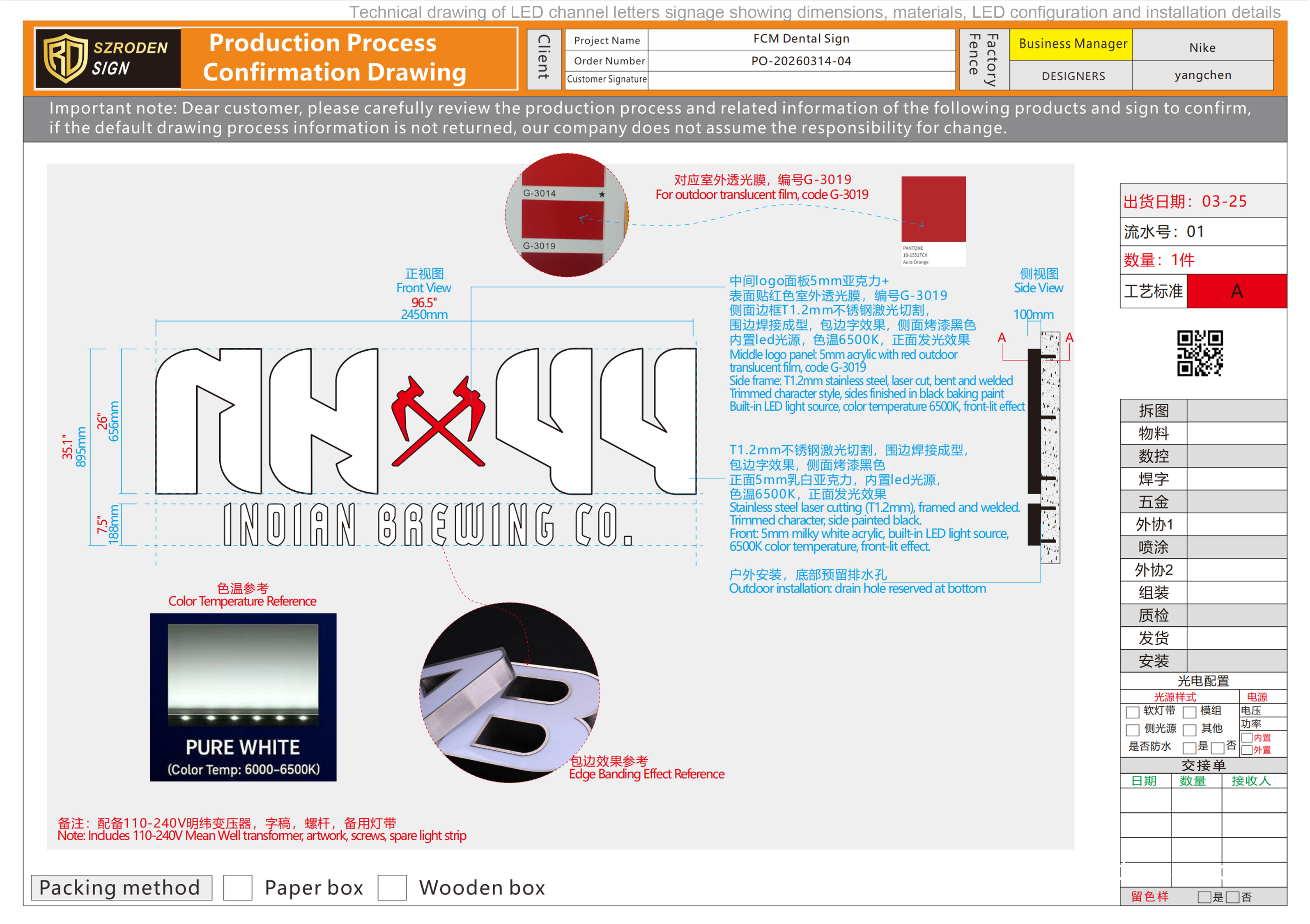

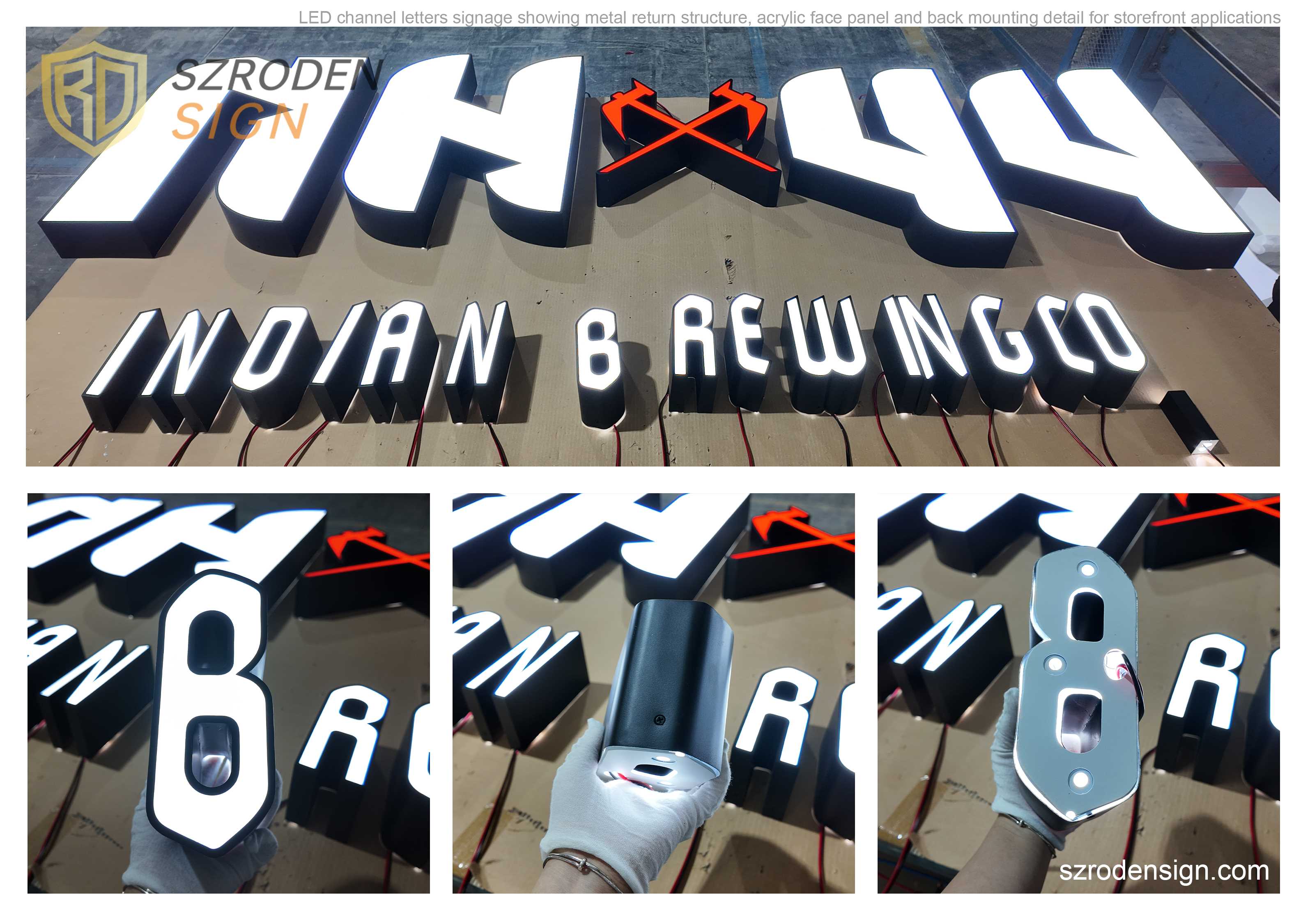

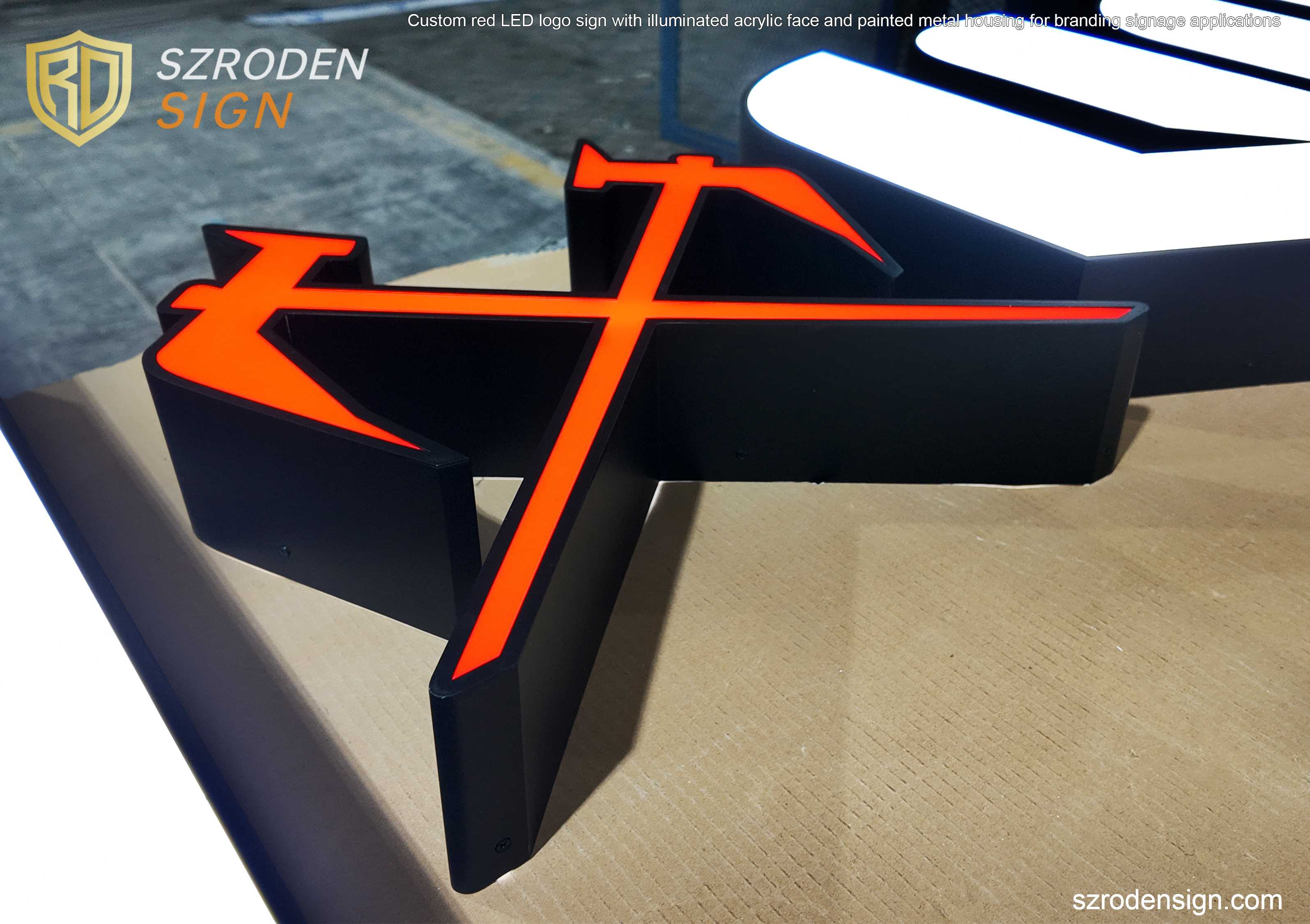

The letters were designed with a metal return structure, combined with an acrylic face to achieve a clean frontlit effect. Depending on the letter size, the depth was controlled within a standard range to ensure proper internal space for lighting distribution, while maintaining structural stability.

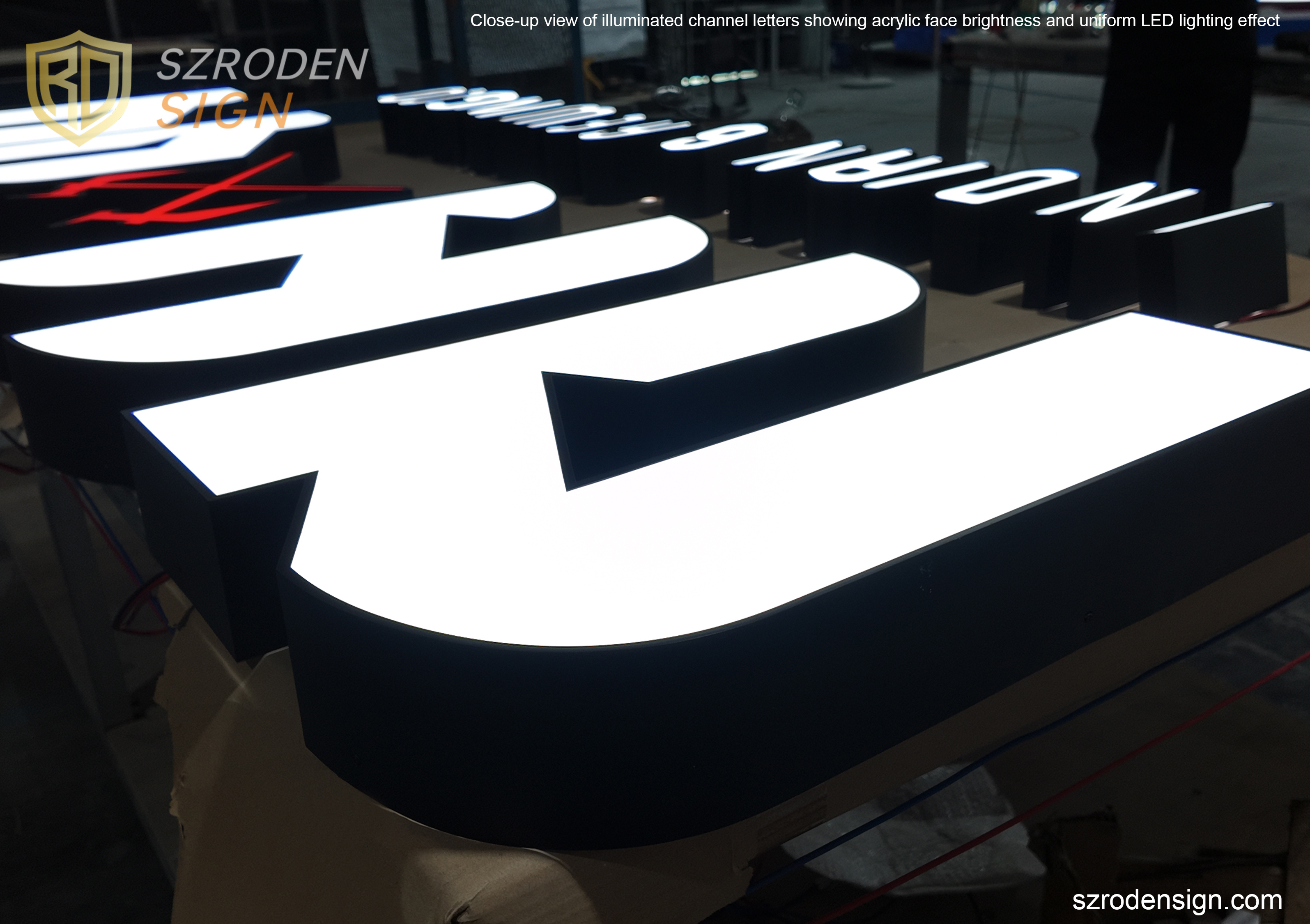

One of the key factors in this project is lighting consistency. The internal LED modules are arranged based on letter size and stroke width, ensuring even illumination across the entire surface. This prevents common issues such as bright spots or shadow areas, which are often seen in low-quality signage.

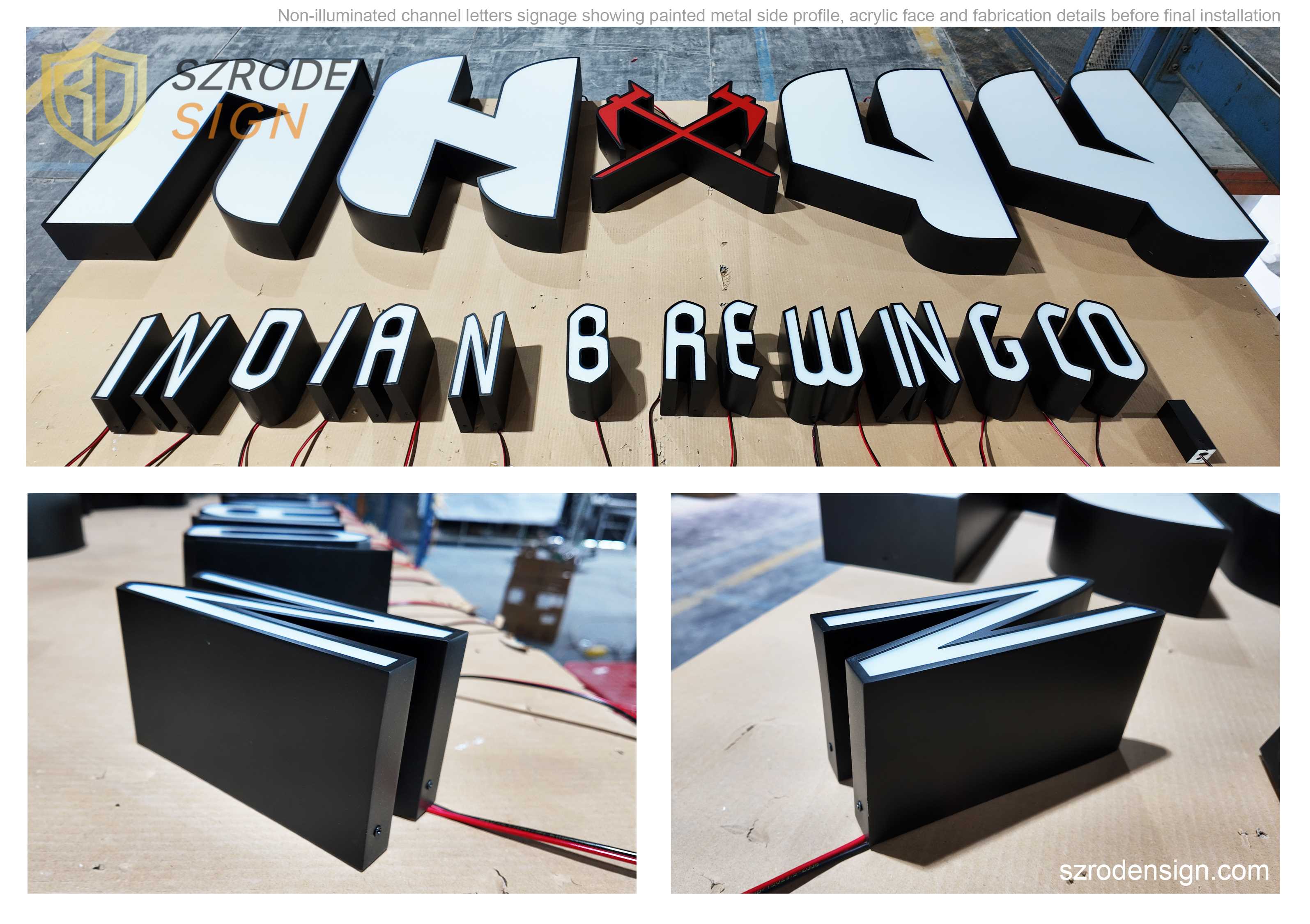

The surface finish was carefully selected based on the brand identity. Options such as painted metal, brushed stainless steel, or electroplated finishes can be applied depending on project requirements. In this case, a clean and modern finish was used to match the commercial environment.

From a fabrication standpoint, the process follows a structured workflow. It begins with laser cutting of metal components, followed by CNC bending to form the letter returns. Welding is then used to secure the structure, with internal reinforcement added where necessary. After that, surface finishing and painting are completed before installing the LED modules and power system.

Special attention is also given to electrical safety and long-term performance. The LED system uses waterproof modules (IP65 rating), combined with reliable power supplies to ensure stable operation in outdoor conditions.

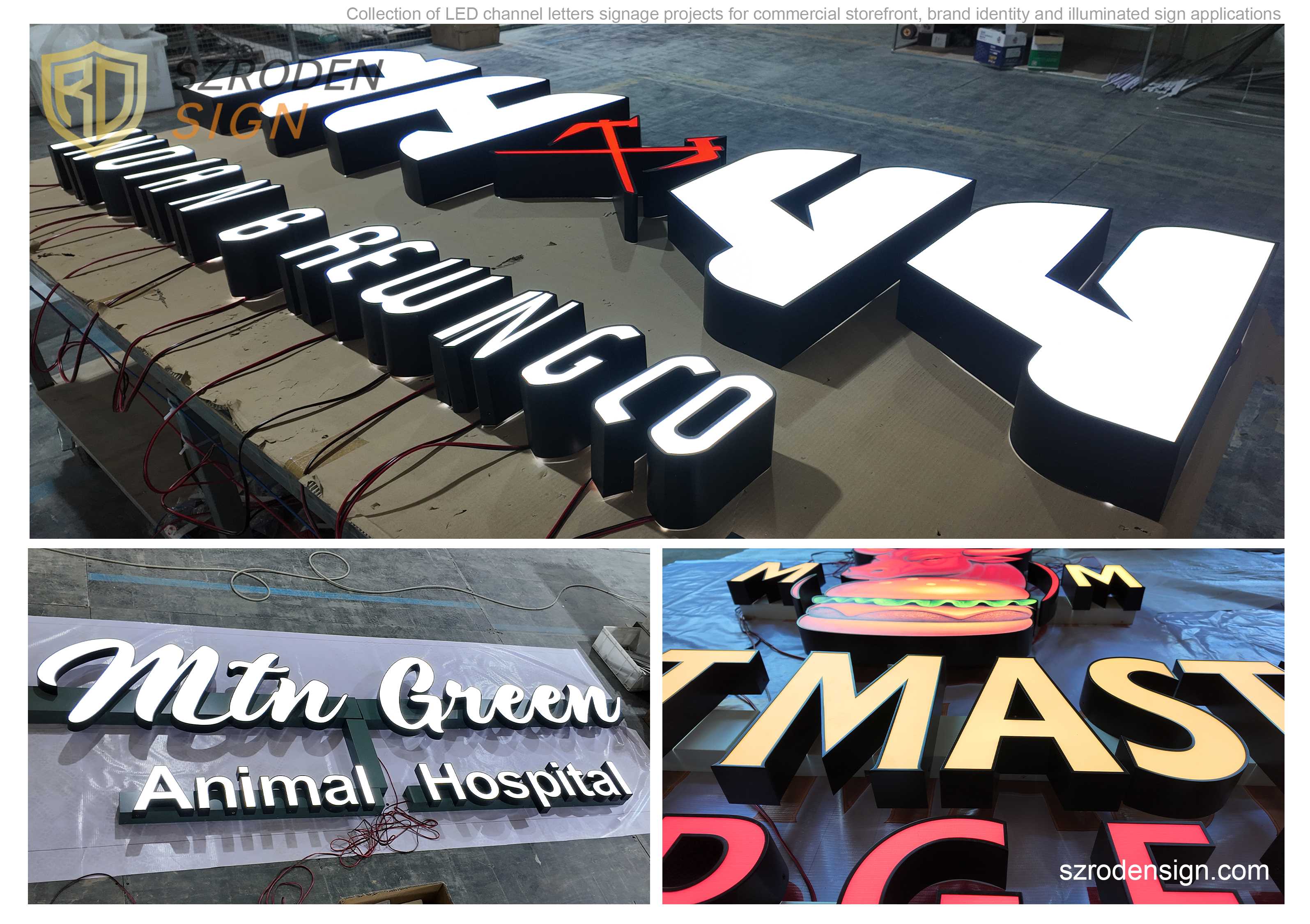

This type of LED channel letter signage is widely used for retail stores, shopping centers, restaurants, and corporate branding. It provides a balance between strong visual impact and reliable structural performance, making it a standard solution for commercial signage projects.

• Type: LED Channel Letters
• Structure: Metal return + acrylic face
• Lighting: LED modules (custom layout)
• Waterproof Level: IP65
• Fabrication: Laser cutting + CNC bending + welding
• Finish: Paint / brushed / electroplated optional
• Application: Storefront / commercial signage
