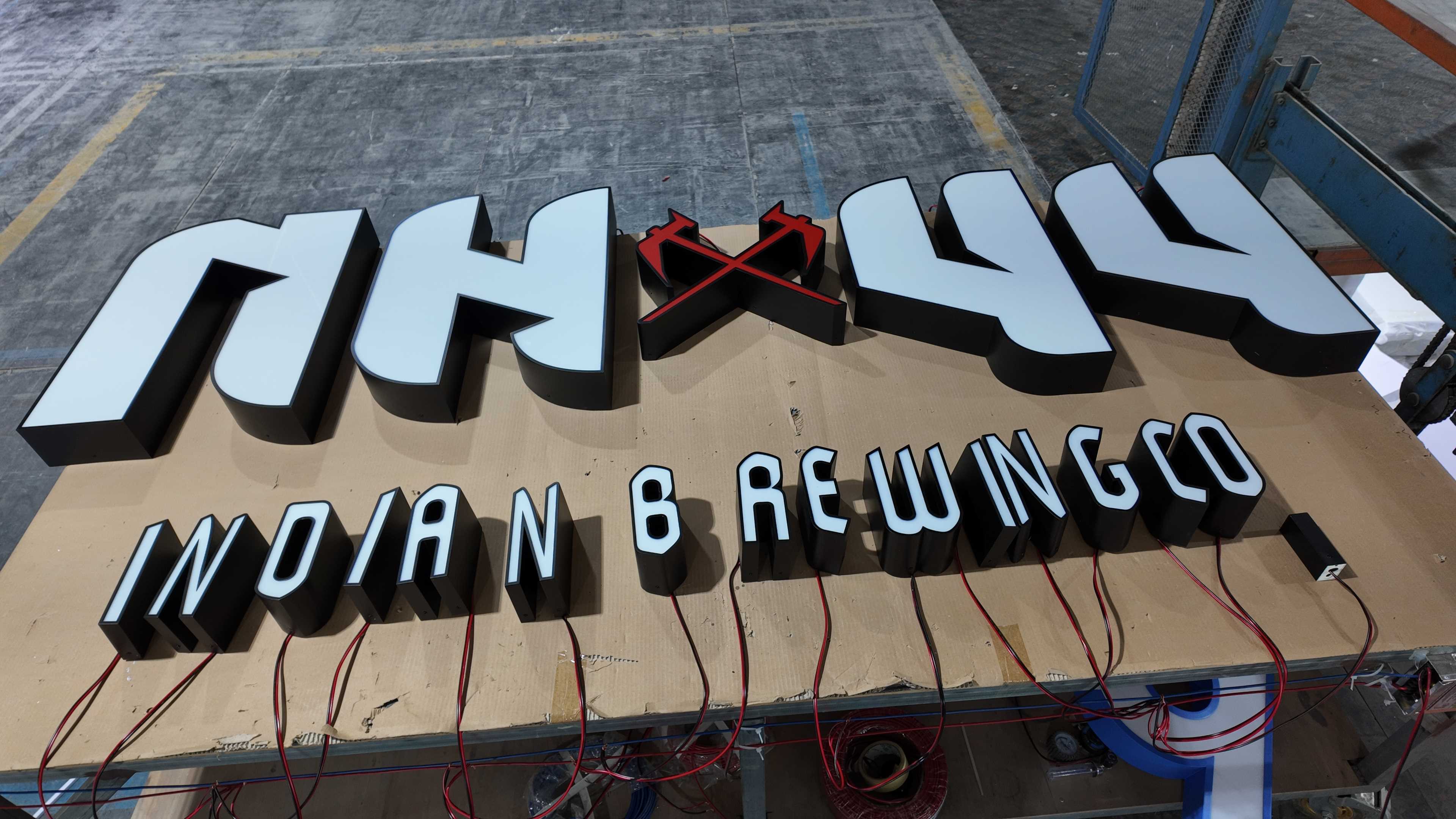

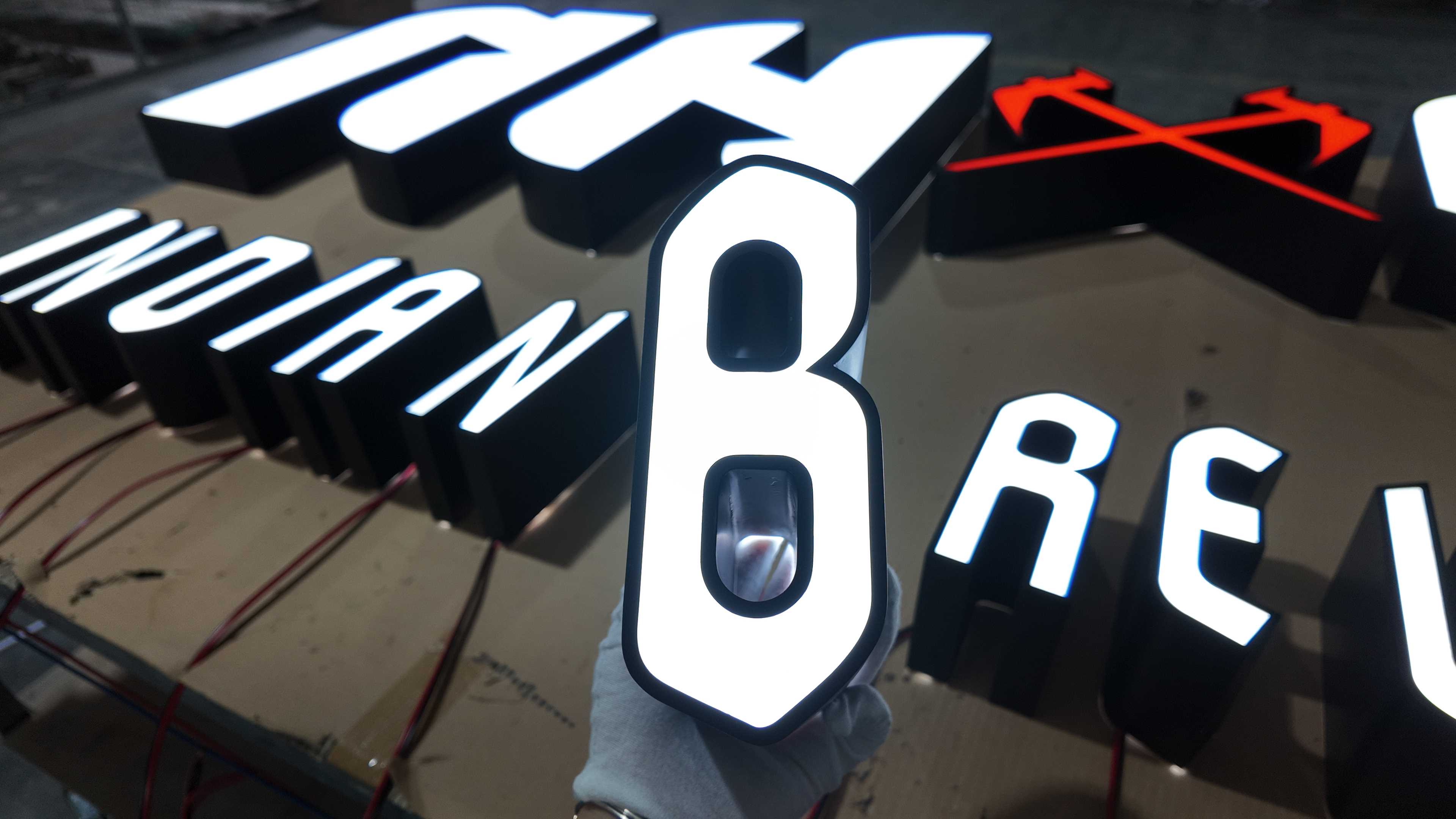

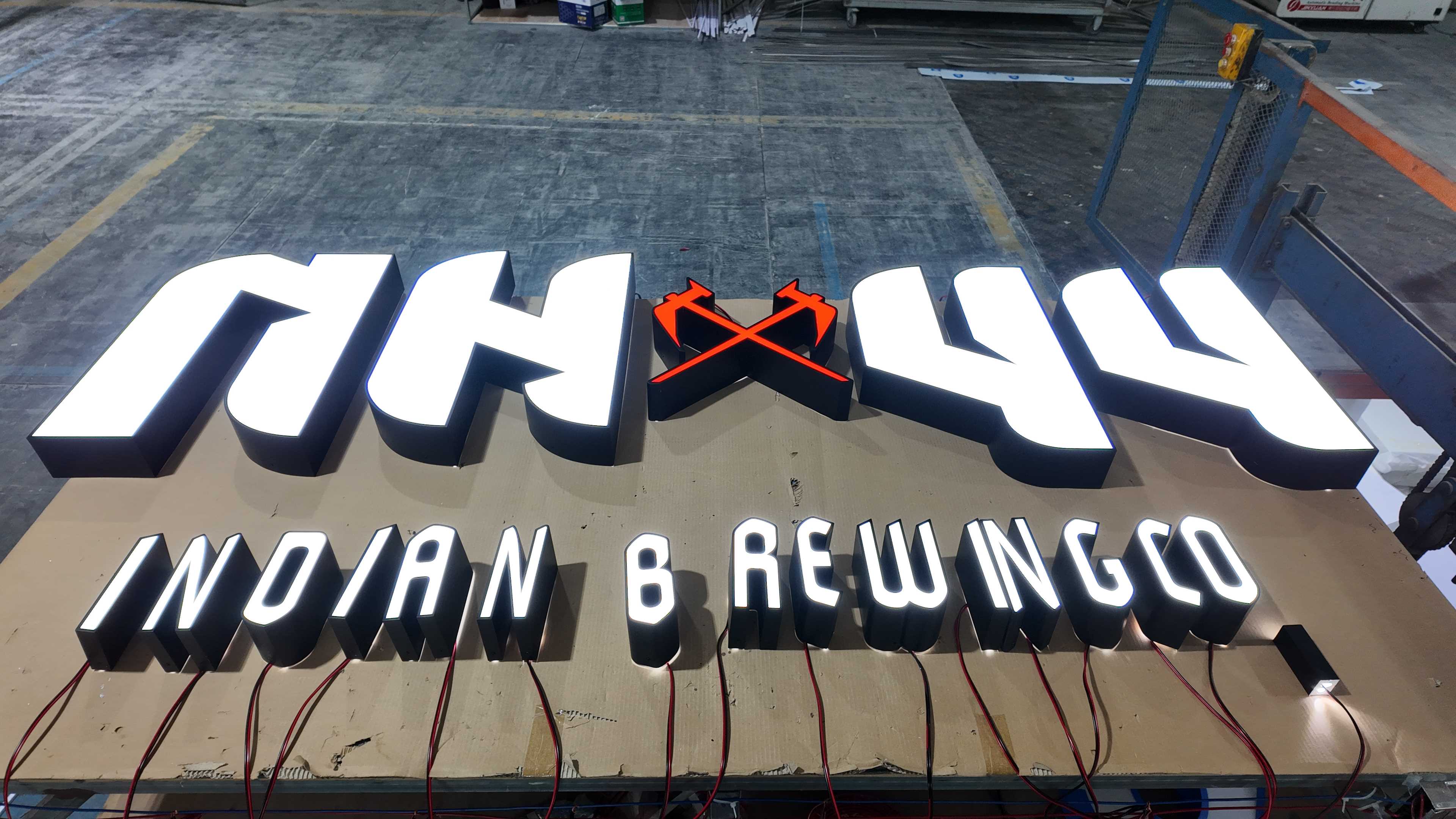

Custom Front Lit LED Channel Letters Sign for Outdoor Building Branding

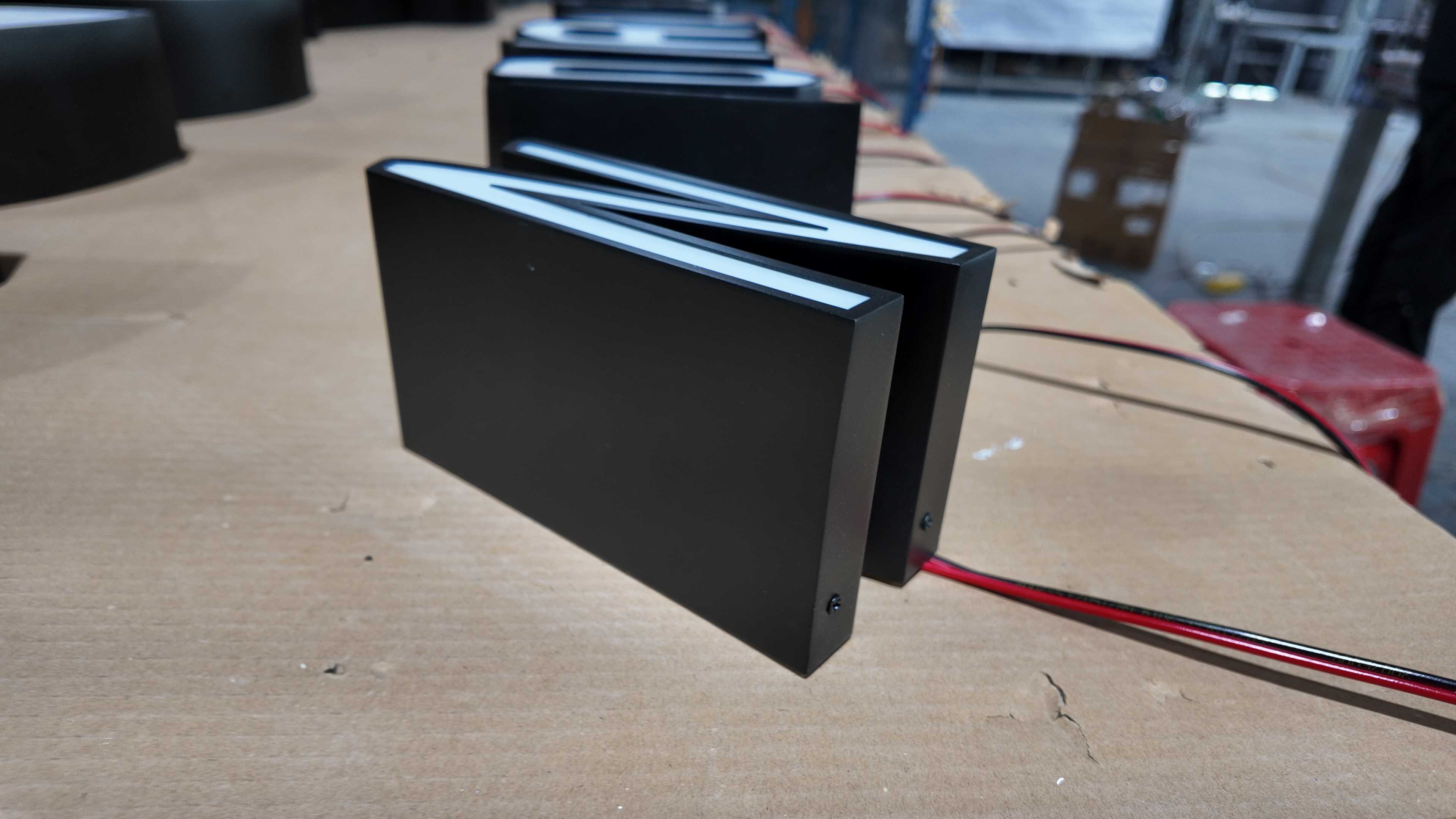

1. Material & Structure

The letter body is fabricated from 1.2–1.5 mm stainless steel or aluminum, laser cut and welded forming.
The face is made of 3–5 mm high-transparency acrylic.
The internal structure is reinforced for stability and long-term outdoor use.

2. Surface Finish

Surface finished with powder coating, baking paint, or brushed metal treatment.
Provides strong resistance to UV, corrosion, and weather exposure.

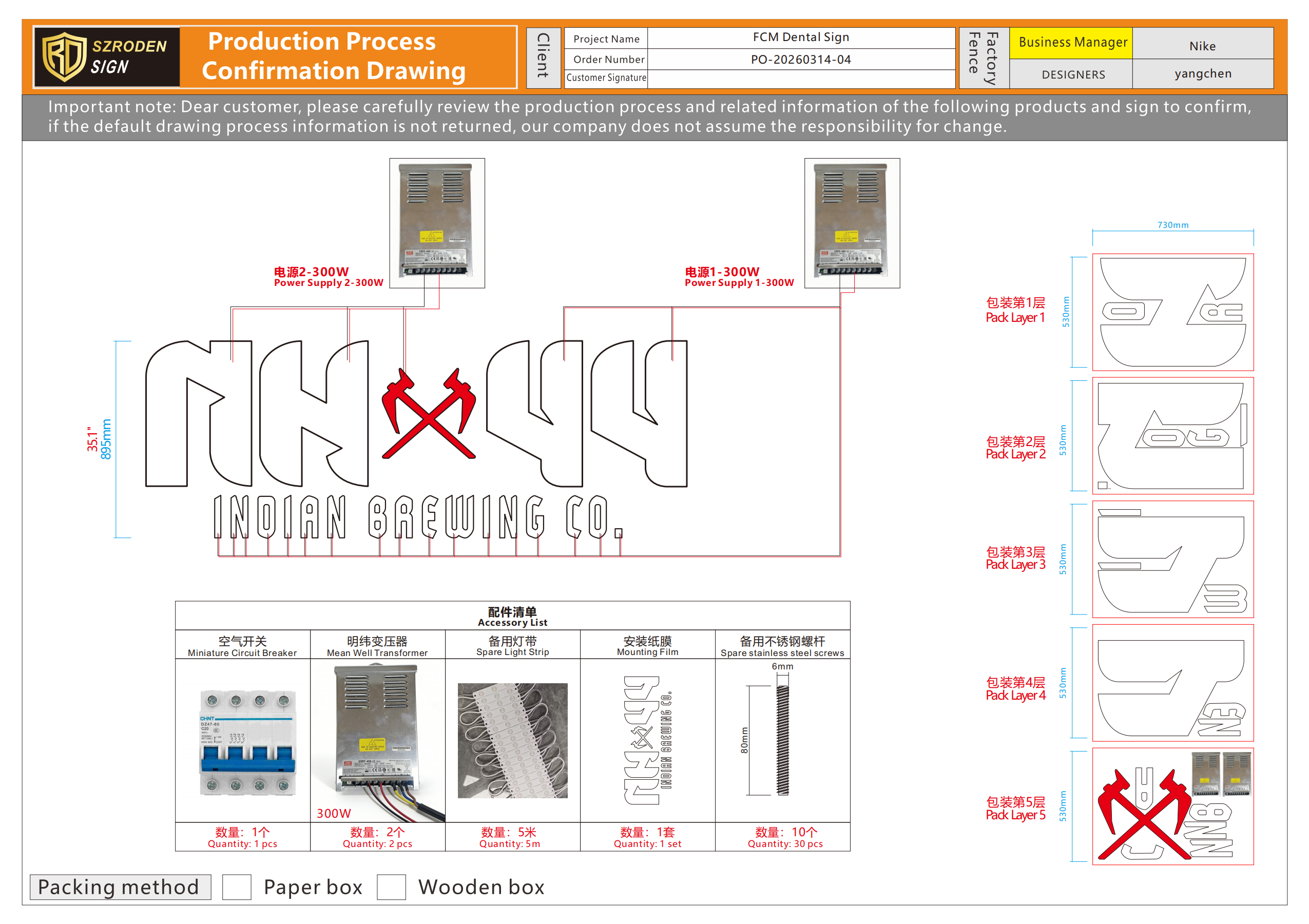

3. Lighting System

Equipped with IP65 waterproof LED modules and Meanwell power supply.
Ensures stable brightness, energy efficiency, and long lifespan.

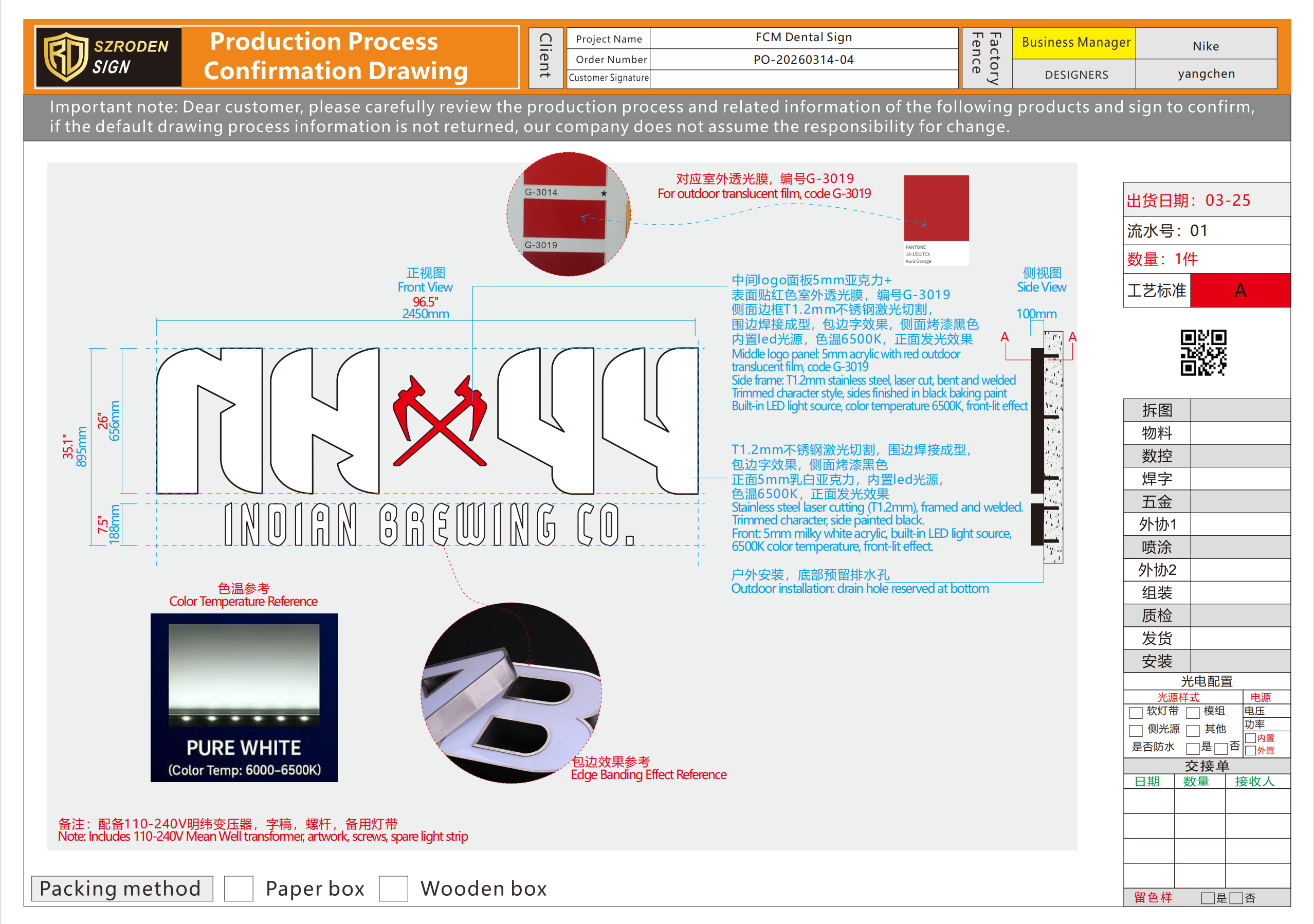

4. Fabrication Process

Laser cutting → bending → welding → polishing → painting → LED installation → final assembly.

5. Installation Method

Installed with back panel mounting or stud fixing method.
Installation template provided for accurate positioning.

6. Applications

Suitable for shopfront signage, commercial buildings, shopping malls, and brand logo signage.
